| Parameter | Description |
| Dimension | 80L x 30W x 25H (mm) |
| Standard Structure | Zinc Alloy Panel, Steel Button |
| Panel Material | Zinc Alloy Panel, Sandblast Finished |
| Current | 3A@36VDC Max |
| Output Contact | NO/COM |
| Mechanical Life | 500,000 tested |
| Operating Temperature | 10‐55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Weight | 0.12kg |
| Packing Quantity (PCS/CTN) | 200pcs/ctn |
| Package Size | 38 x 38 x 20cm |
| Gross Weight | 24kg |

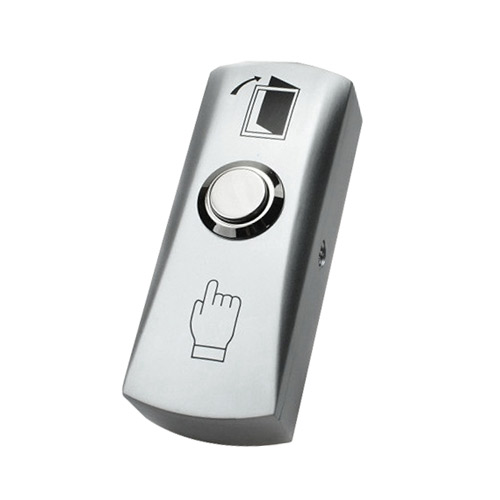

BPZ30
Zinc Exit Switch
- BPZ30 Button is zinc alloy button with back box for surface mount. The dimension is 80(L) x 30(W) x 25(H)mm; it is highly used for doors with narrow frame.
- It is elegant style with long time usage.
